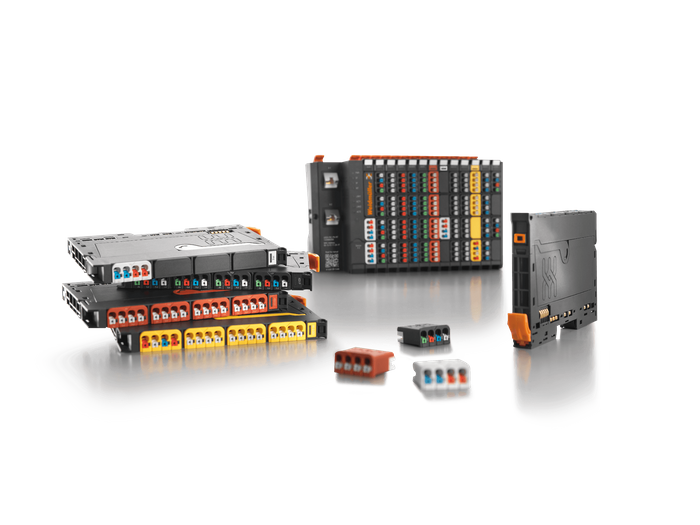

The Weidmuller UR20 din rail mounted I/O solution focuses purely on user benefits ie. tailored planning, faster installation, safer start-up and no more downtime - resulting in improved performance and greater productivity.

UR20 allows the remote I/O station to be kept as compact as possible as it comprises the narrowest modular design on the market. In addition, the header module provides individual current paths for inputs and outputs, which means that fewer additional power feed modules are needed for larger systems. Combine this with tailored modules & channel solutions, UR20 ensures a compact system whilst providing flexibility for future expansion. Furthermore, with UR20, clear assignment of status and diagnosis has never been more simple. LEDs on each channel and status displays on each module provide clear indication, resulting in error rectification without delay. This is mirrored in an integrated web browser, allowing UR20 to provide indispensable benefits for a safe start up and rapid system maintenance.



Features

• Multi protocol Fieldbus couplers

• DI, DI & DIO cards P- or N-switching; reverse polarity protection, up to 3-wire +FE

• AI, AO cards that can be parameterised; up to 3-wire + FE; accuracy 0.1% FSR

• SIL3; OSSD outputs; wire breakage and short-circuit detection

• Strain gauge, load cells, power measurement, I/O link, stepper motor, temperate, counters and communication interface cards

• Direct insertion with true “PUSH INâ€' technology

• Up to 1024 I/O per station
