IMPACTâ„¢ stands for “Integrated Motion Platform And Control Technologyâ„¢â€' and it is an architectural design for digital servo drives that allows for the highest performance and power density available. Drives with IMPACTâ„¢ can easily become self-contained control systems with no need for an external controller.

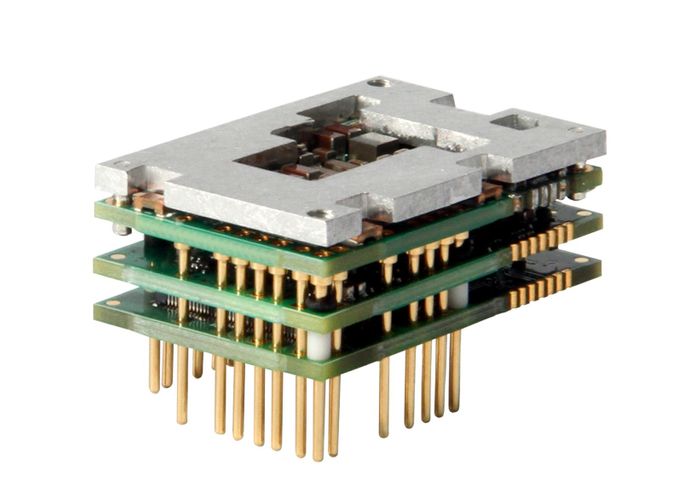

FlexProâ„¢ digital servo drive range is only 38.1 x 25.4 x 16.0mm in size. This tiny drive runs on 10-55 volts DC, communicates over EtherCAT and supports incremental encoder and BISS C-Mode feedback. The Flexpro drive offers 3 different current ratings of 5A, 10A and 25A, with the peak currents of 10amps, 20 amps and 50 amps respectively.

FlexPro™ drive can be used in stand-alone format or soldered to a developer board for test and configuration purposes. These new servo drives are designed to operate within a network, but like previous digital drives, they can also operate stand-alone via stored indexes and sequences with I/O. They are capable of running brushed, brushless, stepper, and linear motors. Our FlexPro™ drives are ideally suited for tightly integrated systems found in all types of robotic applications such as industrial robots, cobots, warehouse automation, Automated Storage and Retrieval Systems (ASRS), palletisers, automated fork lifts, autonomous delivery vehicles, AGVs, electric mobility, lab automation and more.

For more technical information, please visit our website https://www.motioncontrolproducts.com/drives/servo-drives/advanced-motion-controls/flexpro/  or contact our sales team at +44 (0)1202 599922.
