“We've been listening to our customers and network expansion is increasingly important to them. The SW-008 offers reliable multiport networking with 8 Ethernet ports housed in our compact wall-mountable format all at the right commercial spec.â€' – Luke Walsh, Brainboxes MD

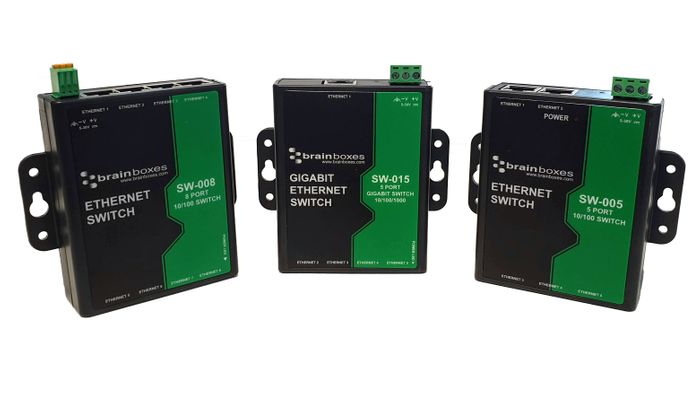

The new SW-008 10/100 Mbs Ethernet switch has 8 galvanically isolated ports to provide safe operation in tough environments and extreme temperatures (-10°C to +60°C / -14°F to +140°F.)

Easy to install into your existing network; the SW-008 is compact at just 30mm wide. The integral mount allows for efficient wall-mounting or integrates with Brainboxes MK-048 optional accessory for DIN-rail mounting.

The power supply wide voltage range means the SW-008 can run from a computer's USB, a standard car battery (making it ideal for in-vehicle/aboard boat applications) or a 24VDC factory floor supply.

Power consumption is optimised for maximum efficiency with a power down mode for when the device is inactive.

At a glance:

• 8 Ethernet ports – bi-directional data flow
• No software required - simply plug in and connect
• Wide operating temperature range -10°C to +60°C / -14°F to +140°F
• Wide voltage input range +5V to +30V DC - can be powered by varied sources
• Compact design
• Integral wall mount - efficient use of space
• Lifetime Support and Lifetime Warranty
